Heating 6,00 (1,80-8,35) kW el. 1,27 kW
Cooling 2,50-6,76 kW, el. 1,96 kW

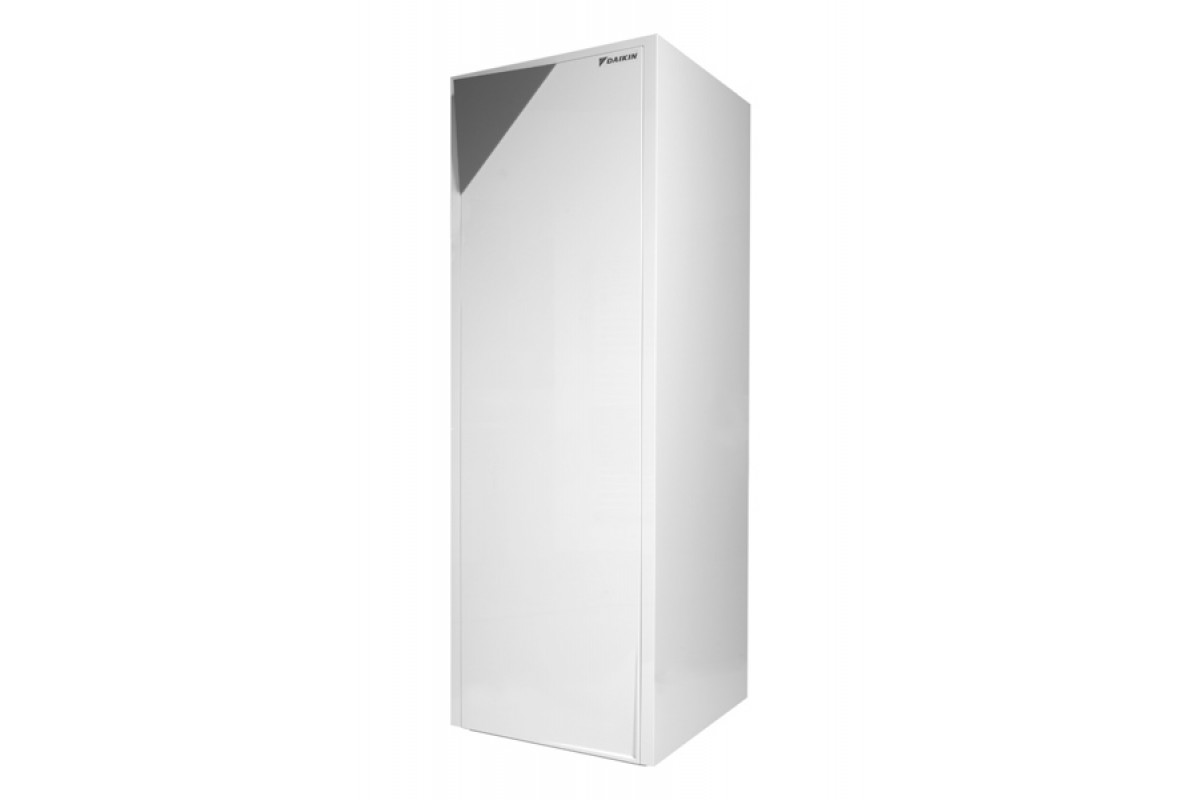

Air to water heat pump Daikin Altherma EHVX08S18CB3V/ERLQ006CV3, built-in 180 l water tank. Guaranteed heating operation down to -25°C.
Daikin Altherma low temperature split
Guaranteed operation: Daikin Altherma is suitable for all climates, even withstanding severe winter conditions
• Daikin is renowned for its know-how related to frost protection on its heat pump range. The outdoor units are specifically designed to avoid ice build-up problems, even in the most severe winter conditions.
• Daikin Altherma low temperature has a guaranteed operation down to an outside temperature of -25°C. This ensures sufficient heat pump operation for even the coldest climates.
• The outdoor unit has a free hanging coil, ensuring no ice accumulates in the lower part of the outdoor unit. This is key to offering appropriate frost protection and has the additional advantage that no electrical bottom plate heater is required.
• The discharge grill is also specifically designed to avoid ice accumulation.
• Our advanced protection against frost and icing means that we can offer the Daikin Altherma across the whole of Europe.
Performance | |
Backup heater, Capacity, kW×pcs | 3,0 |
Low Ambient Heating, °C | -25...+35 |
+7°C/+35°C floor heating, Heating capacity, kW | 6,00 |
+7°C/+35°C floor heating, Input power, kW | 1,27 |
+7°C/+35°C floor heating, COP | 4,74 |
General Feature | |
Heating. Leaving water temperature range, °C | +15...+55 |
DHW. Leaving water temperature range, °C | +25...+60 |
DHW capacity, L | 180 |
Water circulation rated/min/max, L/min | 22/11/34 |
Noise Level Outdoor, dB(A) | 48 |
Refrigerant | R410A (1,60 kg, >10m + 20g/m) |
Dimensions and weight | |
Dimensions indoor WxHxD, mm | 600х1732х728 |
Dimensions outdoor WxHxD, mm | 832х735х307 |
Weight indoor, kg | 117 |
Weight outdoor, kg | 56 |
Мounting Info | |
Power Source, V/Hz/f | 230/50/1 |
Electrical connections | to indoor unit, to outdoor unit |
Current, Outdoor unit, Rated/Max, A | 5,3/10,0 |
Current, hydraulic unit, Max, A | 12,5 |
Water pipe connection diameter, Flow/Return, mm | G 1"1/4 (female) |
Hot water pipe diameter, mm | G 1" (female) - G 1" (female) - G 1/2" (female) |
Refrigerant pipe connections, ″ | 1/4-5/8 |
Max. piping distance horizontal, m | Min/Max 3/30 |
Max. piping distance vertical, m | 20 |
Daikin Altherma EHVX08S18CB3V/ERLQ006CV3
- Brand: DAIKIN
- Product Code: Daikin Altherma 2 LT EHVX08S18CB3V/ERLQ006CV3
- Availability: No longer provide
-
5 931.03€
- Ex Tax: 4 861.50€
